PDC Blank/Cutter for Drilling
PDC Blank/Cutter for Drilling

PDC Blank/Cutter for Drilling

PDC ( Polycrystalline Diamond Composite ) are made by combining some layers of polycrystalline diamonds with a layer of cemented carbide liner at high temperature and high pressure. PDCs are among the most rigid of all diamond tool materials.
Product Description
Our in-house production capabilities mean we can fast-track production to help you overcome your challenges quickly. With a wide range of tungsten carbide and synthetic diamond grades along with extensive knowledge of the mining and construction industries –we develop bespoke solutions to help strike the perfect balance Huanghe’s PDC enhances drilling performance by providing drilling engineers with a drill bit that is reliable, durable, and performance driven.
In largescale mining and construction operations, unreliable machines and tools can have a significant impact on efficiency, increasing operational and maintenance costs.

With the right materials powering your machines and tools, you can achieve a step change in reliability and performance ensuring your equipment operates faster, for longer.Huanghe offers PDC that can help OEMs, toolmakers and their customers to enhance efficiency, performance and safety.
Parameters
Note Type Diameter(mm) Diamond Layer(mm) Total Height(mm) Diamond Chamfer(×45°) Carbide Chamfer(×45°,Optional) Wear Resistance(×104) Impact Toughness(J)
1004F 10.00  1.3-1.5 4.50  0.3-0.5 0.4-0.6 ≥20 ≥300
1304K 13.44  1.3-1.5 4.50  0.3-0.5 0.4-0.6 ≥20 ≥300
1204Y 12.50  1.4-1.6 4.50  0.3-0.5 0.4-0.6 ≥28 ≥400
1304Y 13.33  1.4-1.6 4.70  0.3-0.5 0.4-0.6 ≥28 ≥400
1304HY 13.33  1.0-1.2 4.50  0.3-0.5/No Chamfer 0.4-0.6 ≥35 ≥600
1308HY 13.44  1.3-1.5 8.00  0.3-0.5/No Chamfer 0.4-0.6 ≥35 ≥800
1308ZH 13.44  1.4-1.6 8.00  0.3-0.5 0.4-0.6 ≥35 ≥800
1304Q 13.33  1.3-1.5 4.5-4.8 No Chamfer No Chamfer ≥20 ≥800

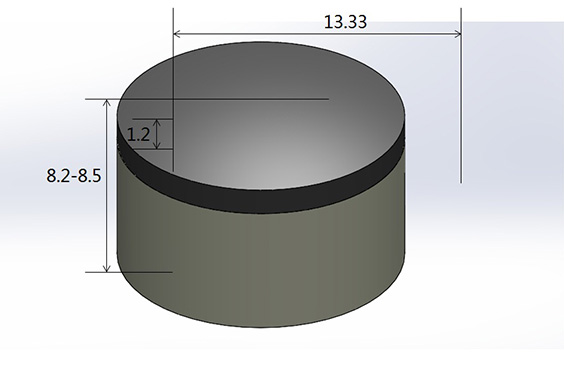

1308QS 13.33  1.4-1.7 8.2-8.5 No Chamfer No Chamfer ≥25 ≥800
10  1304V 13.44  1.2-1.5 5.2-5.6 No Chamfer No Chamfer ≥20 ≥600
11  1308V 13.44  1.2-1.5 8.2-8.6 No Chamfer No Chamfer ≥25 ≥600
14  1308Z 13.44  1.6-2.0 8.00  0.3-0.5 0.4-0.6 ≥20 ≥300
15  1308ZS 13.33  1.5-2.0 8.00  0.3-0.5 0.4-0.6 ≥28 ≥400
16  1308SY 13.44  1.7-1.9 8.00  0.3-0.5 0.4-0.6 ≥45 ≥1200
17  1308YY 13.44  1.8-2.0 8.00  0.3-0.5 0.4-0.6 ≥33 ≥600
18  2508  25.00  1.5-1.8 8.00  0.3-0.5 0.4-0.6 ≥30 ≥600
19  3404  34.00  1.2-1.4 5.00  0.3-0.5 0.4-0.6 ≥30 ≥600
20  3406  34.00  1.2-1.4 6.00  0.3-0.5 0.4-0.6 ≥30 ≥600
21  1608  16.00  1.0-2.5 8.00  0.3-0.5 0.4-0.6 ≥30 ≥600
22  1313  13.00  1.0-2.5 13.00  0.3-0.5 0.4-0.6 ≥30 ≥600
